Contactors for Capacitor Switching - all with a proven endurance of over 100,000 operations

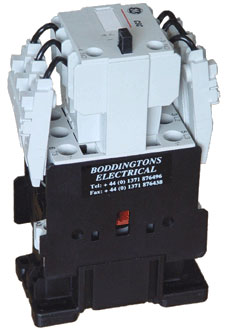

Our CSC contactors have early make contacts, fitted with two resistors per phase to reduce the capacitive inrush current during the first quarter cycle. After approx 6 milli-secs., the early make contacts open, and the main contacts then carry the capacitor current. The early make contacts and resistors are in the frontal block, mounted on top of the main contacts.

Our CK contactors handle the capacitive inrush current using heavy duty alloy contacts, with proven electrical endurance in excess of 100,000 capacitor switching operations.

We list below the common kVAr ratings. Contactors for intermediate and higher ratings are available. Please contact us.

*** The above table shows part nos for the 415 and 240V coils. The coil voltage is denoted by the last letter of the Part No.

Other coil voltages available are shown in the table below.

****  Aux contacts. Up to two aux contacts can be fitted either N/C or N/O.

Please contact us:

For 100 kvar and above please see our CK Range - details in preparation, please call 01371 876543 for latest information
