Harmonic Filter & Blocking Reactor

7% (189Hz) and 5.67% (210Hz)

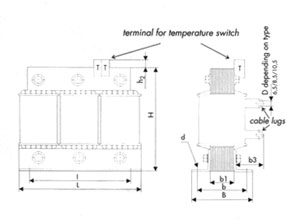

If the operating temperature of 120°C is exceeded, the reactor circuit is disconnected by a thermal switch (included as standard).

Adjusted rating

The adjusted reactor is designed to create exactly the required output of reactive power, allowing for the internal voltage rise inside the resonating circuit formed together with the capacitor connected in the circuit. Note that exact sizing of the capacitor is necessary.

Non-Adjusted rating

The non-adjusted reactor is matched to a power capacitor with standard rating at mains voltage. This allows for additional installation of detuning reactors in existing non-detuned systems, however, it will lead to increased output to kVAr due to voltage rise inside the resonance circuit.

Harmonic Filter Reactor

Technical Information

Order Ref


Weight (kg)

Loss Power (W)

M/25/415/50/7/D1a 25kVAr adjusted 189Hz 7% 18 70
M/50/415/50/7/D1a 50kVAr adjusted 189Hz 7% 40 105
M/25/415/50/5.67/D1a 25kVAr adjusted 210Hz 5.67% 18 60
M/50/415/50/5.67/D1a 50kVAr adjusted 210Hz 5.67% 40 95
M25/415/50/7/D 25kVAr non adjusted 189Hz 7% 18 80
M50/415/50/7/D 50kVAr non adjusted 189Hz 7% 40 115
M25/415/50/5.67/D 25kVAr non adjusted 210Hz 5.67% 18 65
M25/415/50/5.67/D 50kVAr non adjusted 210Hz 5.67% 40 95
